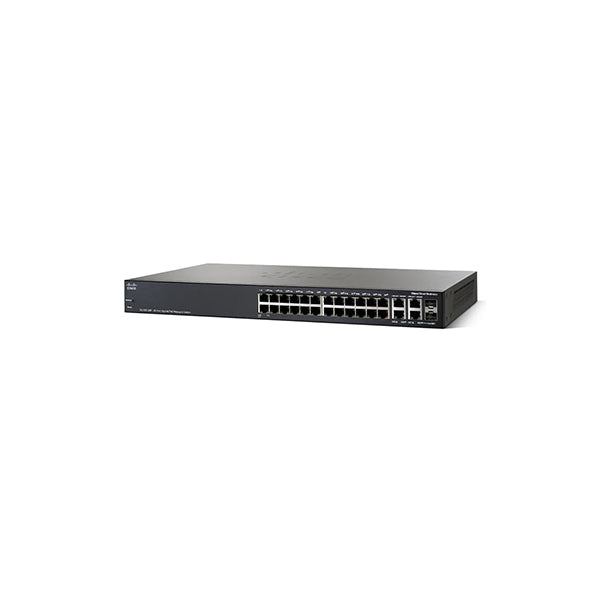

Cisco SG300-28PP-K9-UK 300 Managed Switch Specifications
The Cisco SG300-28PP-K9-UK 300 Managed Switch is a versatile networking solution designed to provide efficient connectivity and enhanced features for small to medium-sized businesses. With its advanced capabilities and user-friendly management, this switch is engineered to improve network performance, security, and ease of use. Here are the specifications for the Cisco SG300-28PP-K9-UK:
Physical Specifications:
- Dimensions (W x H x D): 44.0 cm x 4.45 cm x 25.7 cm (17.3 in. x 1.75 in. x 10.1 in.)
- Weight: 4.81 kg (10.6 lb)
- Rack Mountable: Yes, includes rack-mount brackets
Performance:
- Switching Capacity: Up to 56 Gbps
- Forwarding Rate: 41.67 Mpps (64-byte packet size)
- RAM: 128 MB
- Flash Memory: 16 MB
Ports:
- Total Ports: 28
- 24 x Gigabit Ethernet (10/100/1000) PoE+ ports
- 2 x Combo Gigabit Ethernet ports (RJ45 + SFP)
- 2 x SFP (mini-GBIC) ports
Power over Ethernet (PoE) Features:
- PoE Budget: Up to 180W (30W per port)
- PoE+ Standard: IEEE 802.3at
Layer 2 Features:
- VLANs: Support for up to 4096 VLANs
- Spanning Tree Protocol (STP): IEEE 802.1D (Classic STP), IEEE 802.1w (Rapid STP), IEEE 802.1s (Multiple STP)
- Link Aggregation: Support for static and dynamic link aggregation, up to 8 groups, up to 8 ports per group
- Jumbo Frame Support: Up to 9216 bytes
Layer 3 Features:
- IP Routing: Static routing, up to 512 routes
Security Features:
- Access Control Lists (ACLs): Support for IPv4 and IPv6 ACLs
- Port Security: Secure the switch ports by associating them with specific MAC addresses
- DHCP Snooping: Prevent unauthorized DHCP server offering
- Dynamic ARP Inspection: Prevent ARP spoofing attacks
Management:
- Web-based GUI: User-friendly graphical interface for configuration and management
- CLI (Command Line Interface): Text-based configuration for advanced users
- SNMP (Simple Network Management Protocol): Monitoring and management of network devices
- RMON (Remote Monitoring): Enhanced network monitoring and troubleshooting
- Syslog: Centralized logging for network events
- Port Mirroring: Traffic monitoring for network analysis
Quality of Service (QoS):
- Priority Queues: 4 hardware queues per port
- Class of Service (CoS): IEEE 802.1p-based, DSCP-based
- Rate Limiting: Ingress and egress rate limiting
IPv6 Support:
- IPv6 Routing: Static routing
- IPv6 ACLs: Access control lists for IPv6 traffic
Environmental Specifications:
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage Temperature: -20°C to 70°C (-4°F to 158°F)
- Operating Humidity: 10% to 90% (non-condensing)
- Storage Humidity: 10% to 90% (non-condensing)
The Cisco SG300-28PP-K9-UK 300 Managed Switch offers a comprehensive set of features to enhance network connectivity, management, and security. With PoE capabilities and advanced functions, it is well-suited for businesses seeking a reliable and efficient networking solution.
