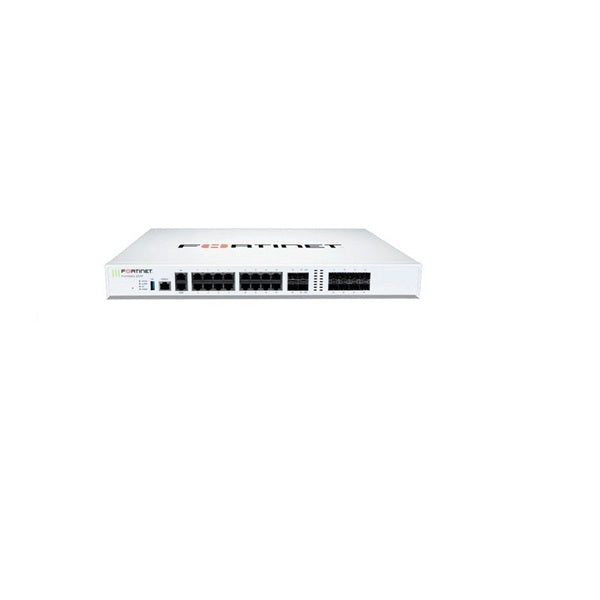

| FortiGate FG-200F Specifications | |
|---|---|
| Feature | Specification |
| GE RJ45 Ports | 16 |
| GE RJ45 Management / HA | 1 / 1 |
| GE SFP Slots | 8 |
| 10 GE SFP+ FortiLink Slots (default) | 2 |
| 10 GE SFP+ Slots | 2 |
| USB Port | 1 |
| Console Port | 1 |
| Onboard Storage | 0 |
| Included Transceivers | 0 |
| IPS Throughput | 25 Gbps |
| NGFW Throughput | 3.5 Gbps |
| Threat Protection Throughput | 3 Gbps |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 27 / 27 / 11 Gbps |
| Firewall Latency (64 byte, UDP) | 4.78 μs |
| Firewall Throughput (Packet per Second) | 16.5 Mpps |
| Concurrent Sessions (TCP) | 3 Million |
| New Sessions/Second (TCP) | 280,000 |
| Firewall Policies | 10,000 |
| IPsec VPN Throughput (512 byte) | 13 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,500 |
| Client-to-Gateway IPsec VPN Tunnels | 16,000 |
| SSL-VPN Throughput | 2 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 500 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 4 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 3,500 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 300,000 |
| Application Control Throughput (HTTP 64K) | 13 Gbps |
| CAPWAP Throughput (HTTP 64K) | 20 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 64 |
| Maximum Number of FortiAPs (Total / Tunnel) | 256 / 128 |
| Maximum Number of FortiTokens | 5,000 |
| High Availability Configurations | Active, Active-Active, Passive, Clustering |
| Dimensions | 1.73 x 17.01 x 13.47 in (44 x 432 x 342 mm) |
| Weight | 9.92 lbs (4.5 kg) |
| Form Factor | Ear Mount, 1 RU |
| AC Power Supply | 100–240V AC, 50/60 Hz |
| Power Consumption (Average / Maximum) | 101.92 W / 118.90 W |
| Current (Maximum) | 100V / 2A, 240V / 1.2A |
| Heat Dissipation | 405.70 BTU/h |
| Redundant Power Supplies | Yes |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 20–90% non-condensing |
| Noise Level | 49.9 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, IPv6 |
