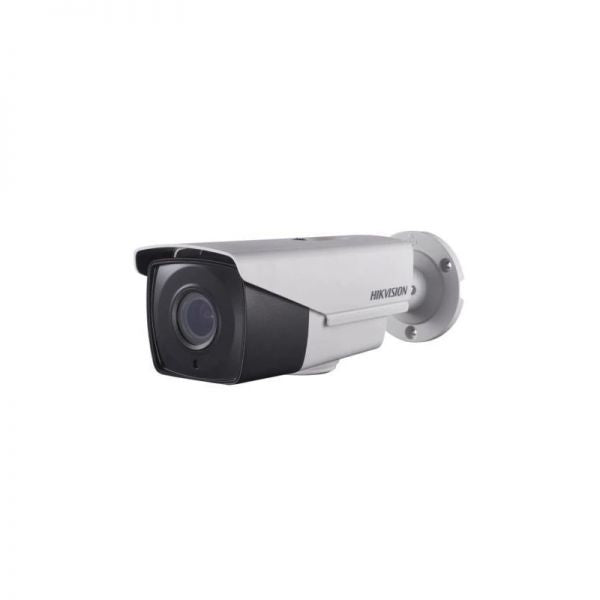

DS-2CE16D8T-IT3ZE Specification |
|
|
Camera |
|
|
Image Sensor |
2MP CMOS Image Sensor |
|
Signal System |
PAL/NTSC |
|
Effective Pixels |
1920(H)*1080(V) |
|
Shutter Time |
1/25(1/30) s to 1/50,000 s |
|
Lens Mount |
φ14 |
|
Adjustment Range |
Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360° |
|
Day& Night |
IR cut filter with auto switch |
|
Video Frame Rate |
1080p@25fps/1080p@30fps |
|
HD Video Output |
1 Analog HD output |
|
Synchronization |
Internal Synchronization |
|
Up the Coax |
Support |
|
Menu |
|
|
Auto White Balance |
Auto/MWB |
|
BLC |
Support |
|
AGC |
Support |
|
HLC |
Support |
|
Language |
English |
|
General |
|
|
Operating Conditions |
-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
|
Power Supply |
12 VDC±25%/PoC.at |
|
Weather Proof |
IP67 |
|
IR Range |
Up to 80m |
|
Communication |
Up the coax Protocol: HIKVISION-C (Coaxitron) |
|
Dimension |
92mm×84.8mm×269.6mm (3.62” × 3.34” × 3.34”) |
