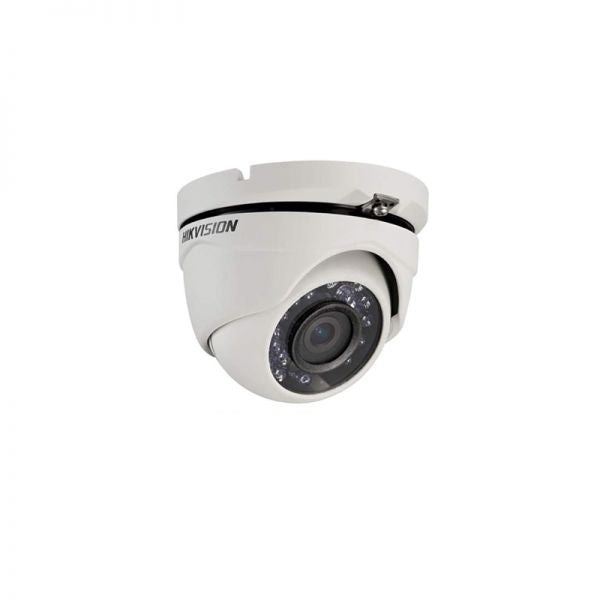

DS-2CE56C2T-IRM Specification

Camera

Image Sensor

1.3MP CMOS Image Sensor

Signal System

PAL/NTSC

Effective Pixels

1280(H)x960(V)

Min. Illumination

0.01 Lux @(F1.2,AGC ON), 0 Lux with IR

Shutter Time

1/25(1/30) s to 1/50,000 s

Lens

3.6mm (2.8mm, 6mm optional)

Angle of View: 78°(3.6mm), 97.3°(2.8mm), 51.2°(6mm)

Lens Mount

M12

Adjustment Range

Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°

Day& Night

IR cut filter with auto switch

Video Frame Rate

720p@25fps/720p@30fps

HD Video Output

1 Analog HD output

Synchronization

Internal Synchronization

S/N Ratio

More than 62 dB

General

Operating Conditions

-40 °C - 60 °C (-40 °F - 140 °F)

Humidity 90% or less (non-condensing)

Power Supply

12 V DC±10%

Power Consumption

Max. 4W

Weather Proof

IP66

IR Range

Up to 20m

Dimension

89.6 × 59.1 mm (3.53” × 2.33”)
