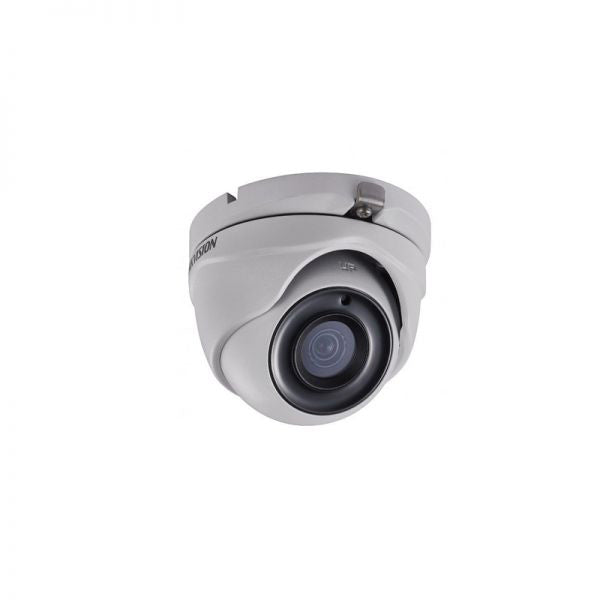

DS-2CE56D8T-ITME Specification

Camera

Image Sensor

2MP CMOS Image Sensor

Signal System

PAL/NTSC

Effective Pixels

1920(H)*1080(V)

Shutter Time

1/25(1/30) s to 1/50,000 s

Lens Mount

M12

Adjustment Range

Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°

Day& Night

IR cut filter

Video Frame Rate

1080p@25fps/1080p@30fps

HD Video Output

1 Analog HD output

Synchronization

Internal Synchronization

Up the Coax

Support

Menu

Auto White Balance

Auto/MWB

BLC

Support

AGC

Support

Language

English

General

Operating Conditions

-40 °C - 60 °C (-40 °F - 140 °F)

Humidity 90% or less (non-condensing)

Power Supply

12 VDC±25%/PoC.af

Weather Proof

IP67

IR Range

Up to 30m

Communication

Up the coax

Protocol: HIKVISION-C(Coaxitron)

Dimension

89.47 mm × 68.2 mm (3.52" × 2.68")
