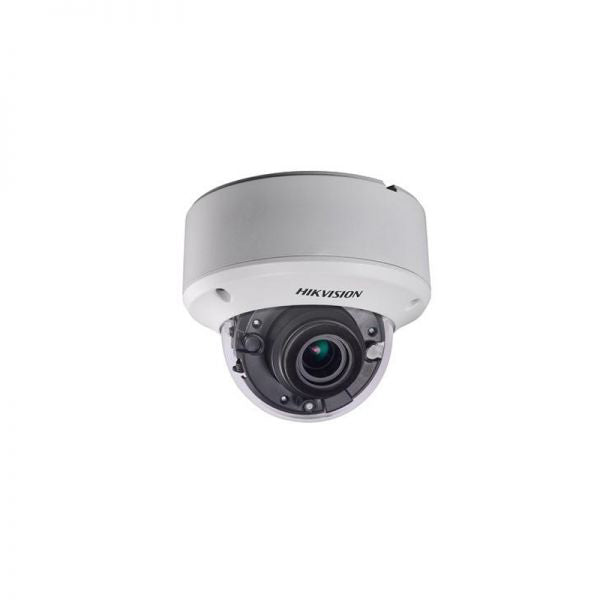

DS-2CE56D8T-AVPIT3Z Specification

Camera

Signal System

PAL/NTSC

Effective Pixels

1920(H)*1080(V)

Min. Illumination

Color: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR

Shutter Time

1/25(1/30) s to 1/50,000 s

Lens

2.8 mm to 12 mm motorized vari-focal lens

Lens Mount

φ14

Adjustment Range

Pan: 0° to 340°, Tilt:0° to 75°, Rotate: 0° to 355°

Day& Night

IR cut filter with auto switch

Wide Dynamic Range

75dB

Video Frame Rate

1080p@25fps/1080p@30fps

HD Video Output

1 Analog HD output

Synchronization

Internal Synchronization

Up the Coax

Support

Menu

AGC

Support

Language

English/Chinese

Function

Brightness, Sharpness, Mirror, Smart IR

General

Operating Conditions

-40 °C - 60 °C (-40 °F - 140 °F)

Humidity 90% or less (non-condensing)

Power Consumption

Max. 7W

IR Range

Up to 40m

Dimension

Φ 145.2 mm × 124.1 mm (Φ 5.72" × 4.89" )
