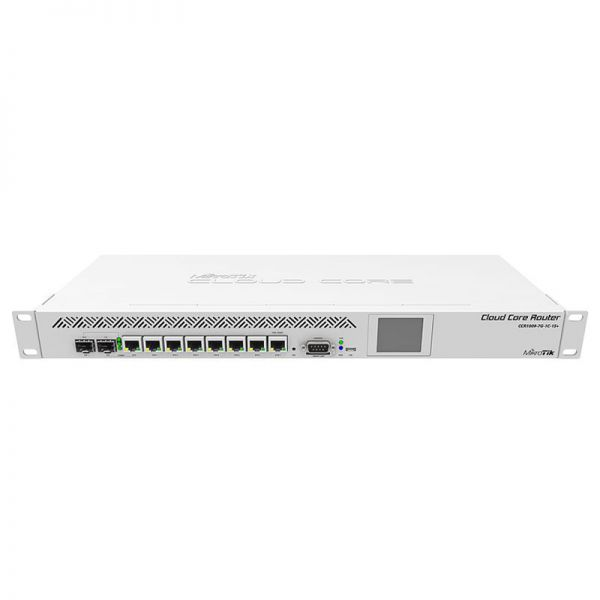

Mikrotik CCR1009-7G-1C-1S-plus Specifications |
|
| Brand | Mikrotik |
| Model | CCR1009-7G-1C-1S-plus |
| Form Factor | 1U rackmount |
| Ethernet Ports | 7x Gigabit Ethernet |
| Combo Port | 1x Combo port (SFP or Gigabit Ethernet) |
| SFP-plus Cage | 1x SFP-plus cage |
| CPU | 9 cores x 1.2GHz |
| RAM | 2GB |
| Display | LCD panel |
| Power Supply | Dual Power supplies |
| SmartCard Slot | Yes |
| Operating System | RouterOS L6 |
| Dimensions | 272x190x44mm |
| Storage Type | Built-in NAND |
| Storage Size | 128MB |
| Max Power Consumption | 34W |
| Operational Temperature | -20��C to +60��C |
| Serial Port | RS232 |
| Antenna Gain | 4dBi |
| Fan Count | Passive cooling (no fan) |
| License Level | Level 6 |
