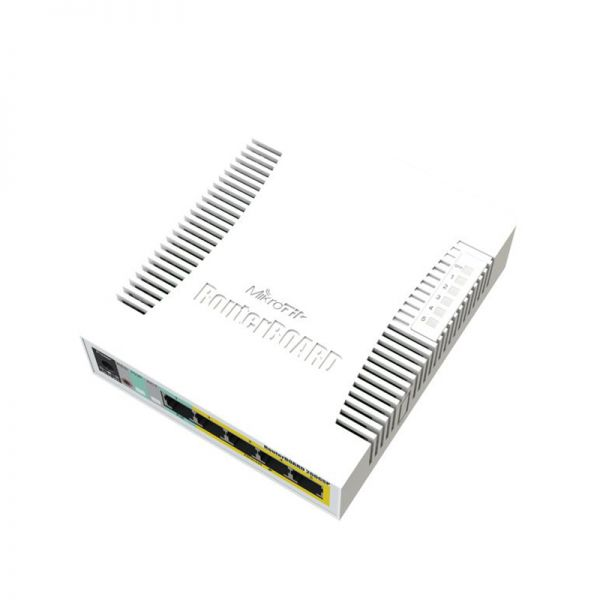

Mikrotik CSS106-1G-4P-1S Specifications |
|
| Brand | Mikrotik |
| Model | CSS106-1G-4P-1S |
| Ethernet Ports | 5x Gigabit Ethernet Ports |
| PoE Out Ports | 4x PoE Out Ports |
| SFP Cage | 1x Gigabit SFP Cage |
| Switching Capacity | 10 Gbps |
| Forwarding Rate | 14.88 Mpps |
| Maximum Power Consumption | 4 W |
| PoE Output | Passive PoE up to 11 W per port |
| Operating System | SwOS |
| Case Material | Plastic |
| Dimensions | 113 x 139 x 28 mm |
| Operating Temperature | -20??C to 70??C |
| MTBF | Approximately 200,000 hours at 25??C |
| Powering | 10-30 V DC |
| LED Indicators | Yes |
| Certification | CE, EAC, ROHS |
| Max Number of VLANs | 4096 |
| RAM | 128 KB |
| Storage | None |
| Jumbo Frames | Yes, up to 9216 bytes |
| MAC Address Table Size | 8K entries |
