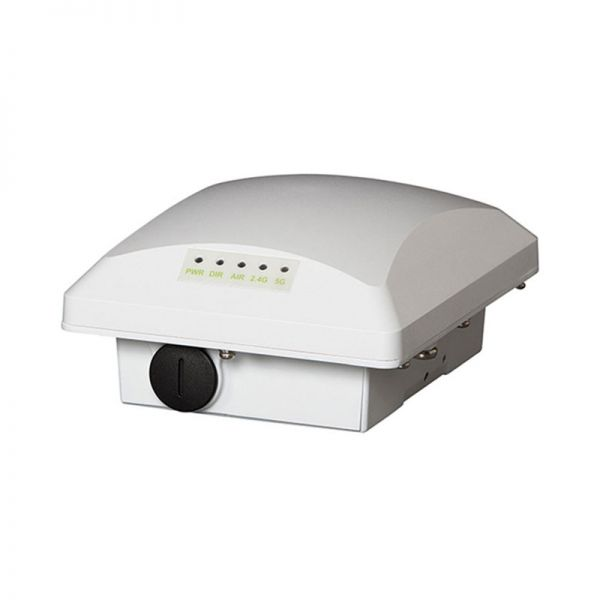

901-T301-WW51 Specification |
|
|
Physical Characteristics |
|
| Power | 802.3af PoE Input (Class 3 PD) |
| Physical Size | 18 cm (L) x 15 cm (W) x 8.6 cm (H)
7 in (L) x 5.9 in (W) x 3.4 in (H) |
| Ethernet Ports | 10/100/1000Base-T 802.3,802.3 u,802.3ab
802.3at/af PoE PD Input Jumbo frame support (2290 byte max MTU) |
| RF Connections | N female qty 2 (optional 5GHz only) |
| Environmental Conditions | Operating temperature range: -20°C to 55° C
Weather protection: IP67 per IEC 60529 |
| Power Draw | PoE Input
Idle: 6.5W Typical: 7.5W Peak: 11W |
| Degree sector Coverage | 120×30 degree |
| Mounting Options | Wall Mount
Pole Mount Diameter 1” to 2.5” |
|
Performance and Capacity |
|
| Physical Layer Modulation Data Rate | 2.4GHz 802.11b/g/n 300Mbps
5GHz 802.11a/n/ac 867Mbps |
| Concurrent Stations | Up to 500 capable per AP |
| Simultaneous VoIP Clients | Up to 30 |
|
Wi-Fi |
|
| Standards | 5 GHz IEEE 802.11ac
2GHz IEEE 802.11g/n |
| Frequency Bands | IEEE 802.11g/n 2.4-2.472GHz (ch1-13 CE, ch1-11 US)
IEEE 802.11ac 5GHz U-NII-1 5.15-5.25 GHz U-NII-2 5.25-5.35 (DFS) U-NII-2B 5.37-5.47† U-NII-2C 5.47-5.725 (DFS) U-NII-3 5.725-5.825 ISM 5.725 – 5.875 U-NII-4 5.85-5.925† |
| WLAN Radio Configuration | Dual band concurrent 2 x 2:2 stream radios |
| Maximum Tx Power* | 26 dBm for 2.4GHz
25 dBm for 5.0GHz |
| Channelization | 2.4GHz 802.11b/g/n 20/40 MHz
5GHz 802.11a/n/ac 20/40/80 MHz |
| BSSID | Up to 32 (27 configurable) on 2.4 GHz
Up to 16 (13 configurable) on 5 GHz |
