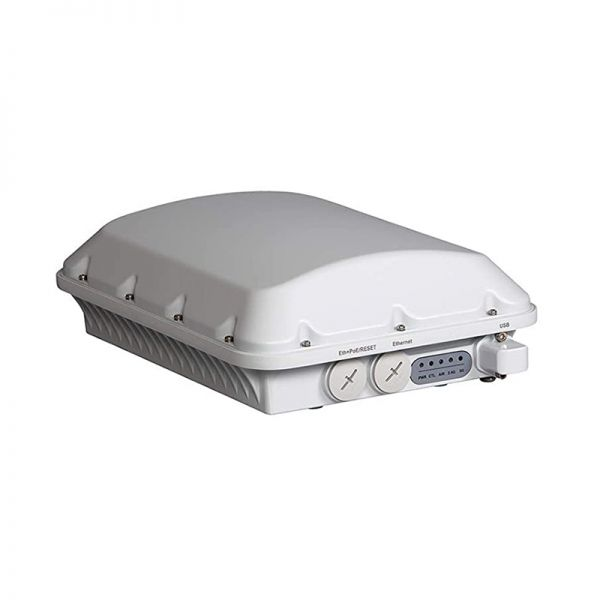

RUCKUS T610 Specification |
|
|
WI-FI |
|
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac Wave 2 |
| Supported Rates | 802.11ac: 6.5 to 1,733Mbps (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80)
802.11n: 6.5Mbps to 600Mbps (MCS0 to MCS 31) 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps 802.11b: 11, 5.5, 2 and 1 Mbps |
| Supported Channels | 2.4GHz: 1-13
5GHz: 36-64, 100-144, 149-165 |
| MIMO | 4×4 SU-MIMO
4×4 MU-MIMO |
| Spatial Streams | 4 SU-MIMO
3 MU-MIMO |
| Radio Chains and Streams | 4×4:4 |
| Channelization | 20, 40, 80MHz |
| Security | WPA-PSK, WPA-TKIP, WPA2-Personal, WPA2-Enterprise, WPA3-Personal, WPA3-Enterprise, AES, 802.11i, Dynamic PSK
WIPS/WIDS |
| Other Wi-Fi Features | WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v
Hotspot Hotspot 2.0 Captive Portal WISPr |
|
RF |
|
| Antenna Type | BeamFlex+ adaptive antennas with polarization diversity
Adaptive antenna that provides up to 4,000+ unique antenna patterns |
| Antenna Gain (max) | Omni -Up to 3dBi
Sector -Up to 8dBi |
| Peak Transmit Power (aggregate across MIMO chains) | 28dBm for both 2.4GHz & 5GHz |
| BeamFlex+ SINR Transmit Power Gain* | Up to 6 dB |
| BeamFlex+ SINR Receive Power Gain* | Up to 4 dB |
| Minimum Receive Sensitivity1 | -104dBm |
| Frequency Bands | ISM (2.4-2.484GHz)
U-NII-1 (5.15-5.25GHz) U-NII-2A (5.25-5.35GHz) U-NII-2C (5.47-5.725GHz) U-NII-3 (5.725-5.85GHz) |
|
Performance and Capacity |
|
| Peak PHY Rates | 2.4GHz: 600Mbps
5GHz: 1733Mbps |
| Client Capacity | Up to 512 clients per AP |
| SSID | Up to 31 per AP |
|
Ruckus Radio Management |
|
| Antenna Optimization | BeamFlex+
Polarization Diversity with Maximal Ratio Combining (PD-MRC) |
| Wi-Fi Channel Management | ChannelFly
Background Scan Based |
| Client Density Management | Adaptive Band Balancing
Client Load Balancing Airtime Fairness Airtime-based WLAN Prioritization |
| SmartCast Quality of Service | QoS-based scheduling
Directed Multicast L2/L3/L4 ACLs |
| Mobility | SmartRoam |
| Diagnostic Tools | Spectrum Analysis
SpeedFlex |
|
Networking |
|
| Controller Platform Support | SmartZone
ZoneDirector Unleashed2 Cloud Standalone |
| Mesh | SmartMesh™ wireless meshing technology. Self-healing Mesh |
| IP | IPv4, IPv6 |
| VLAN | 802.1Q (1 per BSSID or dynamic per use based on RADIUS)
VLAN Pooling Port-based |
| 802.1x | Authenticator and Supplicant |
| Tunnel | L2TP, GRE, Soft-GRE |
| Policy Management Tools | Application Recognition and Control
Access Control Lists Device Fingerprinting Rate Limiting |
| IoT Capable | Yes |
|
Physical Interfaces |
|
| Ethernet | 2 x 1GbE ports, RJ-45
LACP |
| USB | 1 USB 2.0 port, Type A connector |
|
Physical Characteristics |
|
| Physical Size | 31.7(L) x 24.1(W) x 9.5(H) cm
12.8(L) x 9.5(W) x 3.7(H) in |
| Ingress Protection | IP-67 |
| Mounting | Wall Mount
Pole Mount Flat Surface Mounting bracket sold separately – see Optional Accessories section |
| Operating Temperature | -40°C (-40°F) to 65°C (149°F) |
| Operating Humidity | Up to 95%, non-condensing |
| Wind Survivability | Up to 266 km/h (165mph) |
