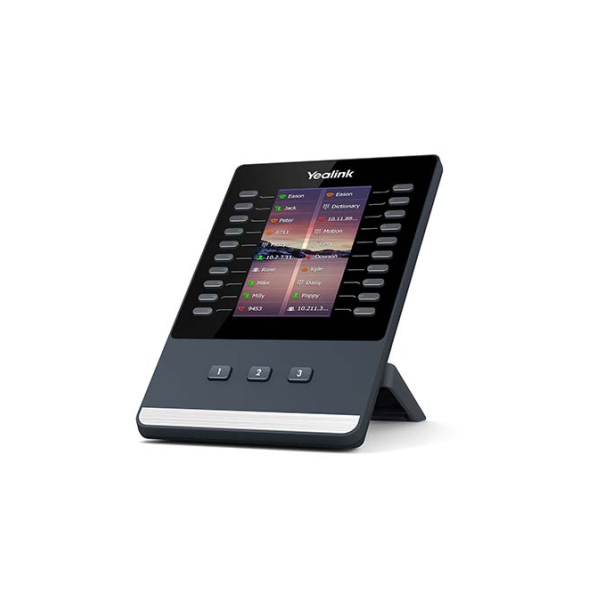

Yealink EXP43 Technical Specification
Display
- 4.3" 272x480-pixel colour display with backlight
- 16 bit depth colour
- Three page views are possible
- Different colour icons for each function shown on the LCD
Features Keys and Indicator
- 20 physical keys each with a dual-colour LED
- 40 additional keys through page switch
- 3 independent control keys with illuminated LED are used for fast switching pages
- Programmable for shared line, BLF List, call park, conference, forward, group pickup, group listening, LDAP, XML Browser
Features
- Wallpaper, screensaver, power saving
- Stand with 2 adjustable angles
- For support of two or three Expansion Modules, an external Yealink power adapter (5V/2A) is required.
- Up to three EXP43 can be attached on Yealink T43U/T46U/T48U IP phones
- USB port (2.0 compliant) for data in and out
- USB port (2.0 compliant) for:
- wired/wireless USB headset
- Wi-Fi through WF40/WF50
- USB call recording through USB flash drive - Max power consumption (PSU): 1.5W
- Dimension (W*D*H*T): 196.5mm*124.0mm*137.5mm*42.6mm
- Applies to Yealink T43U/T46U/T48U
- Operating temperature: 0~40°C (+32~104°F)
- Operating humidity: 10~95%
Package Content
- Yealink EXP43 Colour Expansion Module
- Stand
- Connecting Sheet
- USB Cable
- Screwdriver
- Screws
- Quick Start Guide
