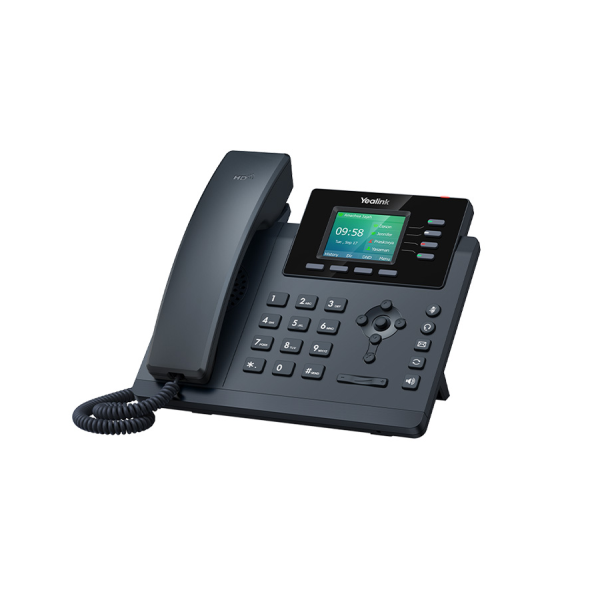

Yealink T34W WiFi Business phone - Technical Specifications

Audio Features

• HD voice: HD handset, HD speaker
• Smart Noise Filtering
• Wideband codec: G.722
• Narrowband codec: PCMU (G.711μ), PCMA (G.711A), G.723.1, G.729, G.729A, G.729B, G.729AB, G.726, iLBC
• DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
• Full-duplex hands-free speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC

Phone Features

• 4 VoIP accounts
• Call hold, mute, DND
• One-touch speed dial, hotline
• Call forward, call waiting, call transfer
• Group listening, SMS, emergency call
• Redial, call return, auto answer
• Local 5-way conferencing
• Direct IP call without SIP proxy
• Ring tone selection/import/delete
• Set date time manually or automatically
• Dial plan
• XML Browser, action URL/URI
• Integrated screenshots
• RTCP-XR, VQ-RTCPXR
• Built-in dual band Wi-Fi:
  • Network standard: IEEE802.11a/b/g/n/ac
  • Transmission rate: Up to 433Mbps (dynamic)
  • Frequency range: 2.4GHz/5.0GHz
• USB port (2.0 compliant) for: Yealink wired/Bluetooth headsets
• Enhanced DSS Key

Directory

• Local phonebook up to 1000 entries
• Blocklist
• XML/LDAP remote phonebook
• Smart dialing
• Phonebook search/import/export
• Call history: dialed/received/missed/forwarded

IP-PBX Features

• Busy Lamp Field (BLF), Bridged Line Appearance (BLA)
• Anonymous call, anonymous call rejection
• Hot-desking, voice mail
• Flexible seating
• Call park, call pickup
• Executive and Assistant
• Centralized call recording
• Visual voice mail
• Call recording

Display and Indicator

• 2.4” 320 x 240-pixel color display with backlight
• 16 bit depth color
• LED for call and message waiting indication
• Dual-color (red or green) illuminated LEDs for line status information
• Wallpaper
• Intuitive user interface with icons and soft keys
• Multilingual user interface
• Caller ID with name and number
• Screensaver
• Power saving

Feature keys

• 4 line keys with LED
• 4 line keys can be programmed up to 12 paperless DSS keys (4-page view)
• 5 features keys: message, headset, redial, mute, hands-free speakerphone
• 6 navigation keys
• Volume control keys

Interface

• Dual-port Gigabit Ethernet
• Power over Ethernet (IEEE 802.3af), class 2
• 1 x RJ9 (4P4C) handset port
• 1 x RJ9 (4P4C) headset port

Other Physical Features

• Color: Classic Grey
• Wall mountable
• External Yealink AC adapter: AC 100-240 V input and DC 5 V/1.2 A output
• Power consumption (PSU): 1.65-2.94 W
• Power consumption (PoE): 2.33-3.35 W
• Dimension (W × D × H × T): 212 × 186 × 146 × 42 mm
• Operating humidity: 10-95%
• Operating temperature: -10 to +45°C (+14 to 113°F)
• Storage temperature: -30 to +70°C (-22 to +158°F)

Management

• Configuration: browser/phone/auto-provision
• Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
• Auto-provision with PnP
• Zero-sp-touch, TR-069
• Phone lock for personal privacy protection
• Reset to factory, reboot
• Package tracing export, system log

Network and Security

• SIP v1 (RFC2543), v2 (RFC3261)
• Call server redundancy supported
• NAT traversal: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV (RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
• SRTP for voice
• Transport Layer Security (TLS 1.3)
• HTTPS certificate manager
• AES encryption for configuration file (AES256)
• Digest authentication
• OpenVPN, IEEE802.1X, L2TP VPN
• IPv6
• LLDP/CDP/DHCP VLAN
• ICE
• WPA2/WPA3
• Secure boot
• GARP (Generic Attribute Registration Protocol)

Package Features

• Package content:
  • Yealink SIP-T34W IP phone
  • Handset with handset cord
  • Ethernet Cable (optional)
  • Stand (not applicable to US wall plate Standard)
  • Quick Start Guide
  • Power Adapter
• Qty/CTN: 10 PCS
• N.W/CTN: 10.286 kg
• G.W/CTN: 11.236 kg
• Giftbox size: 238 × 210 × 103 mm
• Carton Meas: 535 × 443 × 250 mm
